Monokristalni solarni paneli

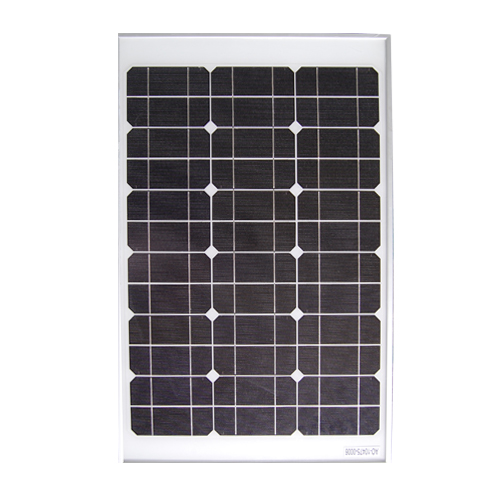

Model: js50w18m

ITEM NO.	JS60W-18M	JS55W-18M	JS50W-18M
Maximum Power (W)	60	55	50
Optimum Power Voltage (V mp)	17.57	17.57	17.57
Optimum Operating Current (I mp):	3.41	3.13	2.85
Open Circuit Voltage (Voc)	21.6	21.6	21.6
Short Circuit Current (ISC)	3.9	3.58	3.25
Cell Efficiency (%)	17%	15.08%	13.20%
Module Efficiency (%)	13.9%	12.38%	10.80%
FF (%)	70-76%
Warranty	90% of 10 years, 80% of 25 years.
Standard Test Conditions	AM1.5 1000W/㎡ 25 +/-2°C
Bypass Diode Rating (A)	12
Cable & Connector Type	Pass the TUV Certificate
Brand Name of Solar Cells	----Cell

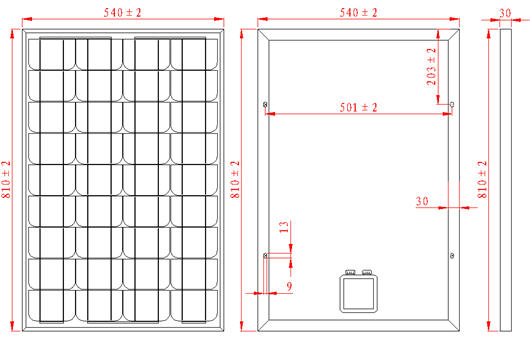

Size of Module (mm)	810*540*30
Solar Cell	125*125 mono
Backing (Material)	TPT
Frame (Material Corners, etc.)	Aluminum-alloy
Number of Cell (PCS)	4*9
N/W(KG)	6.5
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage (e.g. + /-5%)	±5%
Front Glass Thickness (mm)	3.2
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s, 7.53g
Packing	1*20'	8Pallets/768PCS
	1*40'STD	20Pallets/1920PCS
Temperature Coefficients of ISC(%)℃:	0.04
Temperature Coefficients of Voc(%)℃:	-0.38
Temperature Coefficients of Pm(%)℃:	-0.47
Temperature Coefficients of IM(%)℃:	0.04
Temperature Coefficients of VM(%)℃:	-0.38
Temperature Range	-40°C to +85°C



Parameter Type	Max Power (W)	Dimension(mm)	Weight (kg)	Max Current (A)	Max Voltage (V)	Short Circuit Current(A)	Open Circuit Voltage(V)
JS 240W/48M	240	1580×1066×45	19.5	5.02	47.8	5.74	54.62
JS 230W/48M	230	1580×1066×45	19.5	4.81	47.8	5.5	54.62
JS 220W/48M	220	1580×1066×45	19.5	4.6	47.8	5.26	54.62
JS 210W/48M	210	1580×1066×45	19.5	4.39	47.8	5.02	54.62
JS 200W/48M	200	1580×1066×45	19.5	4.18	47.8	4.78	54.62
JS 180W/36M	180	1580×808×40	15	5.07	36	5.90	43.2
JS 175W/36M	175	1580×808×40	15	4.86	36	5.65	43.2
JS 170W/36M	170	1580×808×40	15	4.83	36	5.10	43.2
JS 165W/36M	165	1580×808×40	15	4.58	36	5.04	43.2
JS 160W/36M	160	1580×808×40	15	4.45	36	4.88	43.2
JS 135W/27M	135	1200*808*35	12.7	5.00	27	5.74	31.39
JS-130W/27M	130	1200*808*35	12.7	4.82	27	5.60	31.39
JS 125W/27M	125	1200*808*35	12.7	4.63	27	5.83	31.39
JS 120W/27M	120	1200*808*35	12.7	6.67	27	7.34	31.39
JS 115W/27M	115	1200*808*35	12.7	4.26	27	4.56	31.39
JS 110W/27M	110	1200*808*35	12.7	4.08	27	4.74	31.39
JS 100W/18M	100	1196×540×35	10	5.68	17.57	6.6	21.6
JS 90W/18M	90	1196×540×35	10	4.81	17.57	5.28	22.46
JS 85W/18M	85	1196×540×35	10	4.72	17.57	5.2	21.6
JS 80W/18M	80	1196×540×35	10	4.44	17.57	4.88	21.6
JS 75W/18M	75	1196×540×35	10	4.16	17.57	4.58	21.6
JS 60W/18M	60	810×540×30	6.5	3.41	17.57	3.9	21.6
JS 55W/18M	55	810×540×30	6.5	3.13	17.57	3.58	21.6
JS 50W/18M	50	810×540×30	6.5	2.85	17.57	3.25	21.6
JS 40W/18M	40	610×540×30	5	2.28	17.57	2.6	21.6
JS 25W/18M	35	610×540×30	5	1.94	17.57	2.17	21.6
